Interactions

Interaction elements are defined as having some form of user engagement.

Reveals

A reveal button causes further content to appear below the button.

What does the CHN require in order to effectively engage in the strategies listed above?

The CHN needs a good working knowledge of...

<p>What does the CHN require in order to effectively engage in the strategies listed above?</p>
<div class="reveal" data-button="Answer">
<p>The CHN needs a good working knowledge of...</p>
</div>

What does the CHN require in order to effectively engage in the strategies listed above?

#reveal

Button: Answer

The CHN needs a good working knowledge of...

/reveal

Reveals are useful for question/answer-type engagement where the question is more than one line of text.

The default button text is Reveal; if you would like the button to say something else, please add Button: some text, like in the Word example.

Active Reveals

An input text box can also be added to a reveal, requiring the student to type something into the text box before the reveal button becomes clickable. To add an input text box, add min-text: some number below the #reveal marker in your Word document.

You can also add some placeholder/initial text in the input box, such as "Type your answer here". To do so, include placeholder: some initial text under min-text: some number.

The min-text: specifies the minimum amount of characters the student needs to type in the input box before they can click on the reveal button. A typical one-line sentence has approximately 90 characters.

Developer Notes

Button text is set by the data-button attribute value.

Active Reveals

Use the class active-reveal, instead of reveal.

The following are attributes that can be used for Active Reveals:

  • data-button
  • data-min-text
  • data-placeholder
  • data-rows (changes the size of the input box)

Accordions

Accordions are panel buttons that expand downwards to show further content.

Tolerance Levels

The human body has tolerance levels...

Multiple Kinds of Energy

The interaction of two or more kinds of energy...

<div class="accordion">
<h2>Tolerance Levels</h2>
<p>The human body has tolerance levels...</p>
<h2>Multiple Kinds of Energy</h2>
<p>The interaction of two or more kinds of energy...</p>
</div>

#accordion

Tolerance Levels

The human body has tolerance levels...

Multiple Kinds of Energy

The interaction of two or more kinds of energy...

/accordion

Accordions help the user navigate through related content on a page. Content can be text, an image, a table, a list, etc.

Avoid using an accordion if it will result in a single panel as opposed to one or more panels. Also, consider using a reveal element instead of an accordion if the content has more of a question/answer type format.

Accordions are not always the best solution for consolidating information. See the Nielsen Norman Group's research on accordion user interface problems.

Developer Notes

You can add class="collapsing" to the wrapper to modify behaviour so that when a new accordion button is opened, others are closed.

This can be very disorienting and quite difficult to compare content. Use sparingly.

Tabs

Tabs are content containers that allow users to switch between different sections of content.

Northwest Territories

tab-text: Northwest

  • Capital: Yellowknife
  • Entered Confederation: 1870

Yukon

  • Capital: Whitehorse
  • Entered Confederation: 1898

Nunavut

  • Capital: Iqaluit
  • Entered Confederation: 1999
<div class="tabs">
<h2>Northwest Territories</h2>
<p>tab-text: Northwest</p>
<ul>
<li>Capital: Yellowknife</li>
<li> Entered Confederation: 1870</li>
</ul>
<h2>Yukon</h2>
<ul>
<li>Capital: Whitehorse</li>
<li>Entered Confederation: 1898</li>
</ul><h2>Nunavut</h2>
<ul>
<li>Capital: Iqaluit</li>
<li>Entered Confederation: 1999</li>
</ul>
</div>

#tabs

Northwest Territories

tab-text: Northwest

  • Capital: Yellowknife
  • Entered Confederation: 1870

Yukon

  • Capital: Whitehorse
  • Entered Confederation: 1898

Nunavut

  • Capital: Iqaluit
  • Entered Confederation: 1999

/tabs

Tabs help to organize content and reduce the amount of scrolling required to view information. Content can be text, an image, a table, a list, etc.

The location of the tabs navigation can be changed from the default right-side to top, bottom, or left-side.

Each tab can be customized with a different colour.

Developer Notes

Tabs Position

You can change the position of the tabs navigation from left-side to others by adding the class bellow:

  • <div class="tabs nav-top">
  • <div class="tabs nav-bottom">
  • <div class="tabs nav-left">

Tabs Colour

You can change the colour of individual tabs by adding the data attribute with the choice of colour bellow on the <h2> tag:

  • <h2 data-color="blue">
  • <h2 data-color="#0000FF">

You can also change it to only using one colour (green) by adding:

  • <div class="tabs mono-color">

Tabs size

You can make the size of the tabs larger by adding the class bellow:

  • <div class="tabs large">
  • <div class="tabs larger">
  • <div class="tabs largest">

Swappers

Swappers can be used to cycle through various types of content, one item at a time.

Try this activity

After researching your topic...

a photograph of a mining operation
Mining Pit Operations
a graphic of different kinds of multiple energies
Great video
<div class="swapper">
<div class="activity">
<h3>Try this activity</h3>
<p>After researching your topic...</p>
</div>
<figure class="image smaller">
<img src="/assets/mining-pit-operations.jpeg" alt="a photograph of a mining operation" />
<figcaption>Mining Pit Operations</figcaption>
</figure>
<figure class="image smaller">
<img src="/assets/multiple-energies.png" alt="a graphic of different kinds of multiple energies" />
</figure>
<figure class="video smaller">
<iframe src="https://www.youtube.com/embed/lOT0GOyw2pY" allowfullscreen>
</iframe>
<figcaption>Great video</figcaption>
</figure>
</div>

#swapper

#activity

Try this activity

After researching your topic...

/activity

#image

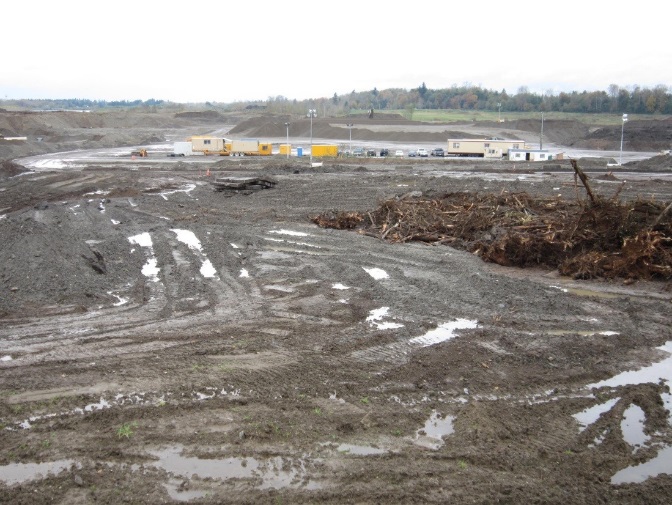

a photograph of a mining operation

Alt: a photograph of a mining operation

Mining Pit Operations

/image

#image

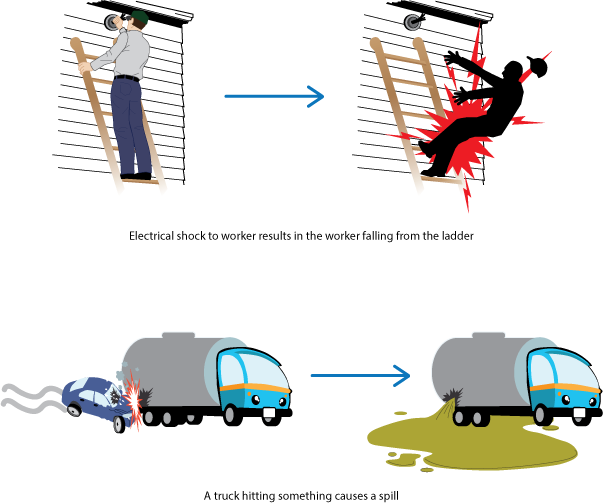

a graphic of different kinds of multiple energies

Alt: a graphic of different kinds of multiple energies

/image

#video

Source: https://www.youtube.com/embed/lOT0GOyw2pY

Great video

/video

/swapper

Although the swapper can be used to display almost any type of content, it's best to use it with related media.

Line-Matching

The line-matching activity is a simple, on-page self-assessment that requires the user to pair items from two different lists (e.g. matching definitions to terms). Each item in the list can have one (1-to-1 matching) match. On a desktop, a user drags a line to connect an item to its correct match. On mobile interfaces, the user simply clicks to match up items.

Match the following academic programs to the appropriate School at BCIT.

School Program
School of Energy Power Engineering
School of Health Sciences Nuclear Medicine
School of Business Human Resource Management
School of Computing & Academic studies Technical Web Design
School of Transportation Aircraft Maintenance Technician - Avionics
Civil Engineering School of Construction & the Environment
<div class="line-matching">
<p>Match the following academic programs to the appropriate School at BCIT.</p>
<figure class="table">
<table>
<thead>
<tr>
<th>School</th>
<th>Program</th>
</tr>
</thead>
<tbody>
<tr>
<td>School of Energy</td>
<td>Power Engineering</td>
</tr>
<tr>
<td>School of Health Sciences</td>
<td>Nuclear Medicine</td>
</tr>
<tr>
<td>School of Business</td>
<td>Human Resource Management</td>
</tr>
<tr>
<td>School of Computing & Academic studies</td>
<td>Technical Web Design</td>
</tr>
<tr>
<td>School of Transportation</td>
<td>Aircraft Maintenance Technician - Avionics</td>
</tr>
<tr>
<td>Civil Engineering</td>
<td>School of Construction & the Environment</td>
</tr>
</tbody>
</table>
</figure>
</div>

#line-matching

Match the following academic programs to the appropriate School at BCIT.

School Program
School of Energy Power Engineering
School of Health Sciences Nuclear Medicine
School of Business Human Resource Management
School of Computing & Academic studies Technical Web Design
School of Transportation Aircraft Maintenance Technician - Avionics
Civil Engineering School of Construction & the Environment

/line-matching

The order of the matching terms is automatically randomized.

Text Length

Ideally, text for both questions and answers should be kept to a maximum of 140 characters.

Large amount of text will have a reduced font size and may not provide the best user experience for students when using this interaction.

Multimedia

While multimedia elements like images and videos can be accommodated into this interaction, it is not recommended as size restrictions will prevent them from being rendered in their best quality.

Checklists

Checklists are a simple way to mark tasks as completed, and to reveal content when items are checked.

Technical Issues in Software Development

  • Draw a flow chart in Visio
    • Describe functionality

    • Assignment 1

      @

      After submitting your assignment, please take the Week 2 quiz.

  • Write pseudo code
<div class="checklist">
<p>Technical Issues in Software Development</p>
<ul>
<li>Draw a flow chart in Visio
<ul>
<li>Describe functionality</li>
<li>
<p>Assignment 1</p>
<p>@</p>
<div class="quiz">
<p>After submitting your assignment, please take the Week 2 quiz.</p>
</div>
</li>
</ul>
</li>
<li>Write pseudo code</li>
</ul>
</div>

#checklist

Technical Issues in Software Development

  • Draw a flow chart in Visio
    • Describe functionality

    • Assignment 1

      @

      #quiz

      After submitting your assignment, please take the Week 2 quiz.

      /quiz

  • Write pseudo code

/checklist

Feedback

Feedback to be revealed is indicated with the @ symbol.

Feedback should be part of the existing list. To add feedback, press Shift + Enter to create a new line within the list.

Checklists remember that items are marked as done unless you clear your browser's cache.

Developer Notes

Add the class strikethrough to the div if you want completed items to have a line through them.

Custom Interactions

Custom interactions can help explain detailed concepts better.

ECG Analysis

Create practice ECG strips with guiding questions for learner knowledge checking
<figure class="interaction">
<h2>ECG Analysis</h2>
<iframe src="https://learn.bcit.ca/d2l/lor/viewer/view_private.d2l?ou=6605&loIdentId=36305" height="760" width="750">
</iframe>
<figcaption>Create practice ECG strips with guiding questions for learner knowledge checking</figcaption>
</figure>

The multimedia team can develop everything from individual elements to complete course modules, games, simulations, and administrative tools. The final product can be delivered over the Internet via web browser, on mobile devices, installed on desktops, or by physical media such as USB drive or DVD.

Flashcards

The flashcards interaction allows users to review a set of study cards, each with a question on the front and an answer on the back.
Front Back
What is the capital of Canada? Ottawa
What does HTML stand for? HyperText Markup Language
What is the largest planet in our solar system? Jupiter
<table class="flashcards">
<thead>
<tr>
<th>Front</th>
<th>Back</th>
</tr>
</thead>
<tbody>
<tr>
<td>What is the capital of Canada?</td>
<td>Ottawa</td>
</tr>
<tr>
<td>What does HTML stand for?</td>
<td>HyperText Markup Language</td>
</tr>
<tr>
<td>What is the largest planet in our solar system?</td>
<td>Jupiter</td>
</tr>
</tbody>
</table>

#flashcards

Flashcard Example

Front Back
What is the capital of Canada? Ottawa
What does HTML stand for? HyperText Markup Language
What is the largest planet in our solar system? Jupiter

/flashcards

Flashcards are an effective tool for active recall and work well as quick knowledge checks for facts, definitions, formulas, and other key information.

The navigation buttons let users move through the cards, shuffle the deck, flip individual cards, or flip the entire deck at once.

Developer Notes

Here's a complete list of all the table-level styling and <tr> classes for flashcards:

Table-Level Data Attributes

Table Classes
  • class="flashcards" - Required to activate flashcard functionality
  • class="flashcards no-number" - Hides the card counter
  • class="flashcards no-nav" - Hides navigation controls
Height Control
  • data-height="500" - Sets fixed height for cards (default: 500px)
Content Alignment (affects all cards)
  • data-justify-content="flex-start" - Positions all content to the left
  • data-justify-content="center" - Positions all content center
  • data-justify-content="flex-end" - Positions all content to the right
  • data-align-items="flex-start" - Positions all content at the top
  • data-align-items="center" - Positions all content center vertically
  • data-align-items="flex-end" - Positions all content at the bottom

Per-Card <tr> Classes (9-Direction Positioning)

Top Row
  • class="top-left" - Content positioned at top-left with left text alignment
  • class="top-center" - Content positioned at top-center with center text alignment
  • class="top-right" - Content positioned at top-right with right text alignment
Middle Row
  • class="middle-left" - Content positioned at middle-left with left text alignment
  • class="middle-center" - Content positioned at middle-center with center text alignment
  • class="middle-right" - Content positioned at middle-right with right text alignment
Bottom Row
  • class="bottom-left" - Content positioned at bottom-left with left text alignment
  • class="bottom-center" - Content positioned at bottom-center with center text alignment
  • class="bottom-right" - Content positioned at bottom-right with right text alignment

Key Points

  • Per-card classes override table attributes: <tr> classes take precedence over table-level data-* attributes
